Petroleum Bitumen

Place of Origin: Venezuela
Model Number: VG-10, VG-20, VG-30, VG-40
Type: Petroleum Asphalt
Grade: A
Softening Point: 46 min
Kinematic Viscosity, 135C, CST, min: 800 1600 2400 3200
Flashpoint, C, min: 250 300 350 400
Softening point, C, min: 40 45 47 50
LOSS ON HEATING (WT)%: 0.2 max
DROP IN PENETRATION AFTER HEATING %: 20 max
I. Viscosity ratio at 60 C, max: 4.0
II. Ductility at 25 C, cm, min: 75,50,40,25
SPORT TEST: Negative
Supply Ability: 30000 Metric Ton/Metric Tons per Month
Packaging Details:

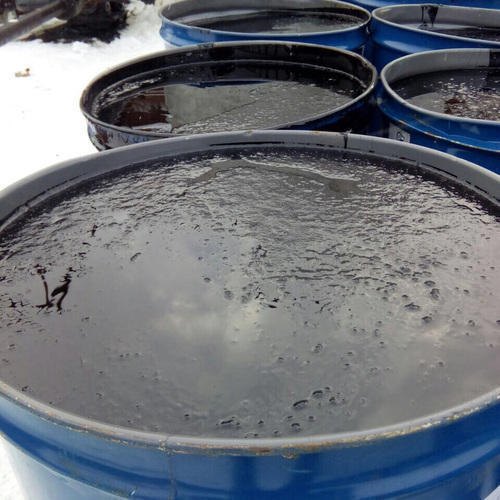

Steel Drum (new, used, embossed)
Jambo
Bulk
flexi bags
steel drum tied in pallet
or according to the requirement of the customers .
Port: Venezuela

Category: Bitumen

Kevin

Purchasing Director (DR Congo)

Kevin is an excellent employee from Congo, with a master’s degree from Cambridge University in the UK. Kevin has joined Seesourcing for more than 5 years. As the head of Procurement in Congo, Kevin has rich experience in ore procurement

drcongo@seesourcing.com

Description
Additional information
Content 1

Description

VISCOSITY GRADE BITUMEN

Bitumen Viscosity Grade VG-10, VG-20, VG-30, VG-40

Viscosity Grade Bitumen (Asphalt) is a Bitumen grade mostly used as a Paving Grade and it’s suitable for road construction and for the asphalt pavements producing with premier attributes. VG Bitumen is usually used in the production of hot mix asphalt.
Viscosity Grade Bitumen is petroleum grade bitumen, which produced from fractional vacuum bottom which comes from distillation of crude oil, which feasible appliance and behavior changes according to its temperature.
Viscosity Grade bitumen is specified by ASTM Standard D3381-09 and AASHTO M226-80 (2008). VG Bitumen specifications cover by Viscosity at 60 ̊C (140 °F).
We have two methods of grading:
* Standard Viscosity Grade Bitumen (AC-Grades), in which the Viscosity of the standard bitumen (asphalt) is measured at 60 ºC (140 ºF).
* RTFOT Viscosity Grade Bitumen (AR-Grades), in which the Viscosity of bitumen (asphalt) is measured at 60 °C (140 °F) after the roll on thin film oven test.

Viscosity grade bitumen has a thermoplastic feature which causes the material to soften at high temperatures and to harden at lower temperatures. This temperature viscosity relevance is significant when specifying the performance parameters such as the adhesion, rheology, durability and application temperatures of bitumen. In the Viscosity Grade Bitumen specifications, the most important emphasizes is based on the Bitumen ductility.

Viscosity Grade Bitumen Uses
VG-10 BITUMEN
VG-10 is mostly used in spraying applications such as surface dressing and Paving in very cold climate instead of 80/100
penetration bitumen grade. It is also used to produce Bitumen Emulsion and Modified Bitumen products.
VG-20 BITUMEN
VG-20 is used for paving in cold climate & high altitude regions.
VG-30 BITUMEN
VG-30 is especially used to construct extra heavy duty Bitumen pavements that need to tolerate significant traffic loads. It can be used instead of 60/70 penetration bitumen grade.
VG-40 BITUMEN
VG-40 is used in highly stressed areas such as intersections, near toll booths and truck parking lots instead of 30/40 penetration
grade. Because of higher viscosity, stiffer Bitumen mixes can be produced to amend resistance to shoving and other problems related to higher temperature and heavy traffic loads.
We have the capability to supply customers a wide range of Bitumen viscosity grades such as VG 10, VG 20, VG 30, VG 40.
